The voltage transfer ratio V2 / V1 in the two port network

Home » Network Theory » Network Elements and the Concept of Circuit » Question

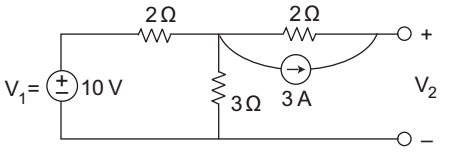

The voltage transfer ratio V2 / V1 in the two port network shown in the figure is—

1. 10/12
2. 12/10
3. 1/2
4. 2/3

Correct Option: B

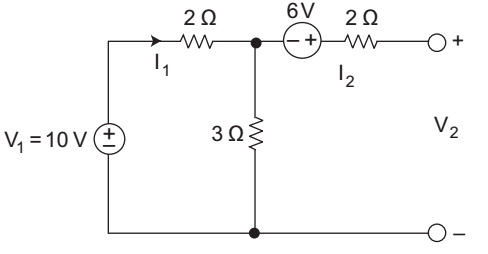

The given network can be redrawn as by applying source transformation technique.

I_l =	10	= 2 amp.
	5

V₂ = 6 + 3I₁
or
V₂ = 6 + 3 × 2 = 12 V
V₁ = 10 V (given)

so,	V₂	=	12
	I₂		10
