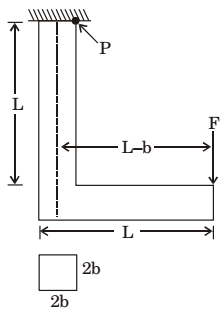

For the component loaded with a force F as shown in the

For the component loaded with a force F as shown in the figure, the axial stress at the corner point P is

Binding moment about P is given as,
M = F (L – b)

⇒	M	= f
	z

Axial stress due to direct load F,

σ =	F	= f
	4b²

⇒ Axial stress = f_p + σ

	F(3L - b)
	4b³

	F(3L - 4b)
	4b³

	F(3L - 4b)
	4b³

	F(3L - 2b)
	4b³
