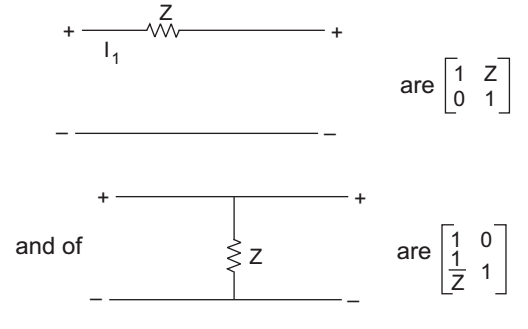

If the ABCD parameters of—

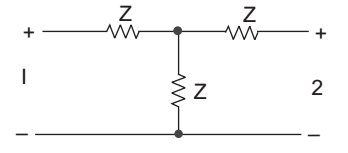

then the ABCD parameters of 1—

Correct Option: B

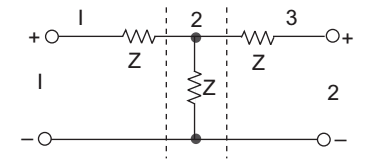

Since the given figure is the combination of the three figure.

	A	B		=		1	Z		1	0		1	Z		=	2	2Z + 1
	C	D		=		0	1		1/z	1		0	1		=	1/z	2
