The block diagrams of two types of half wave rectifiers

Home » Analog Circuits » Analog circuits miscellaneous » Question

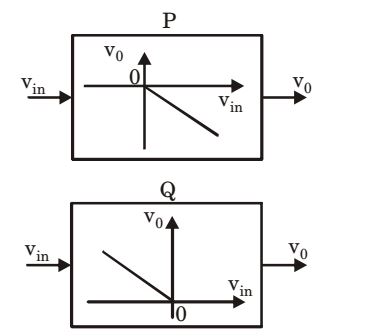

The block diagrams of two types of half wave rectifiers are shown in the figure given below. The transfer characteristics of the rectifiers are also shown within the block. It is desired to make full wave rectifer using above two half-wave rectifiers. The resultant circuit will be

Correct Option: B

	P		Q
For V_in > 0	V₀	= (– ve)	0
For V_in < 0	V₀	= (0)	(+ve)

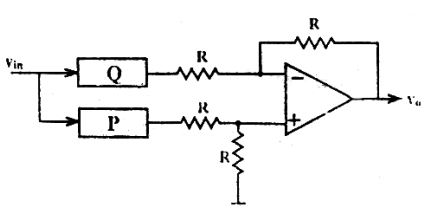

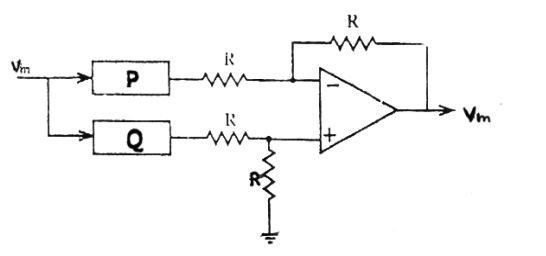

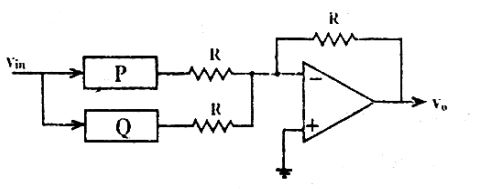

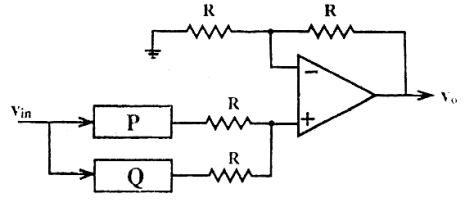

Now check each option.

So, output is always rectified.
